FX101
Dynamics
Noise Gate, Auto Gate, Compressor + Gate, and Compressor stabilize input dynamics.
LIVTRA · Mobile Creative Multi-Effects Processor
MOSAIC
AI stem separation. Drum editing. Three-footswitch control. USB-C audio. A portable processor for practice, creation, recording, and live use.
395gportable creative processor
AI SPLITseparate tracks for focused practice
USB-Cdirect recording to phone / computer
RESONAopen tone ecosystem
creative workflowFrom import to recording
Bring song study, drum programming, tone editing, and direct recording into one connected workflow.
AI SPLITSeparate songs into multiple stems and control each track independently.
DRUM EDITORBuild custom patterns or import samples and MIDI files in the desktop app.
MOBILE EDITOREdit the chain, module parameters, and EQ from phone or desktop.
USB-C AUDIORecord ideas, covers, livestreams, and short videos directly.
01Import song
02Separate stems
03Build rhythm
04Record
APP SUPPORTThis complete workflow is supported in both the LIVTRA mobile app and LIVTRA desktop app.
footswitch controlPreset groups + STOMP mapping
Recall A / B / C preset groups or switch individual effect modules without interrupting your playing.

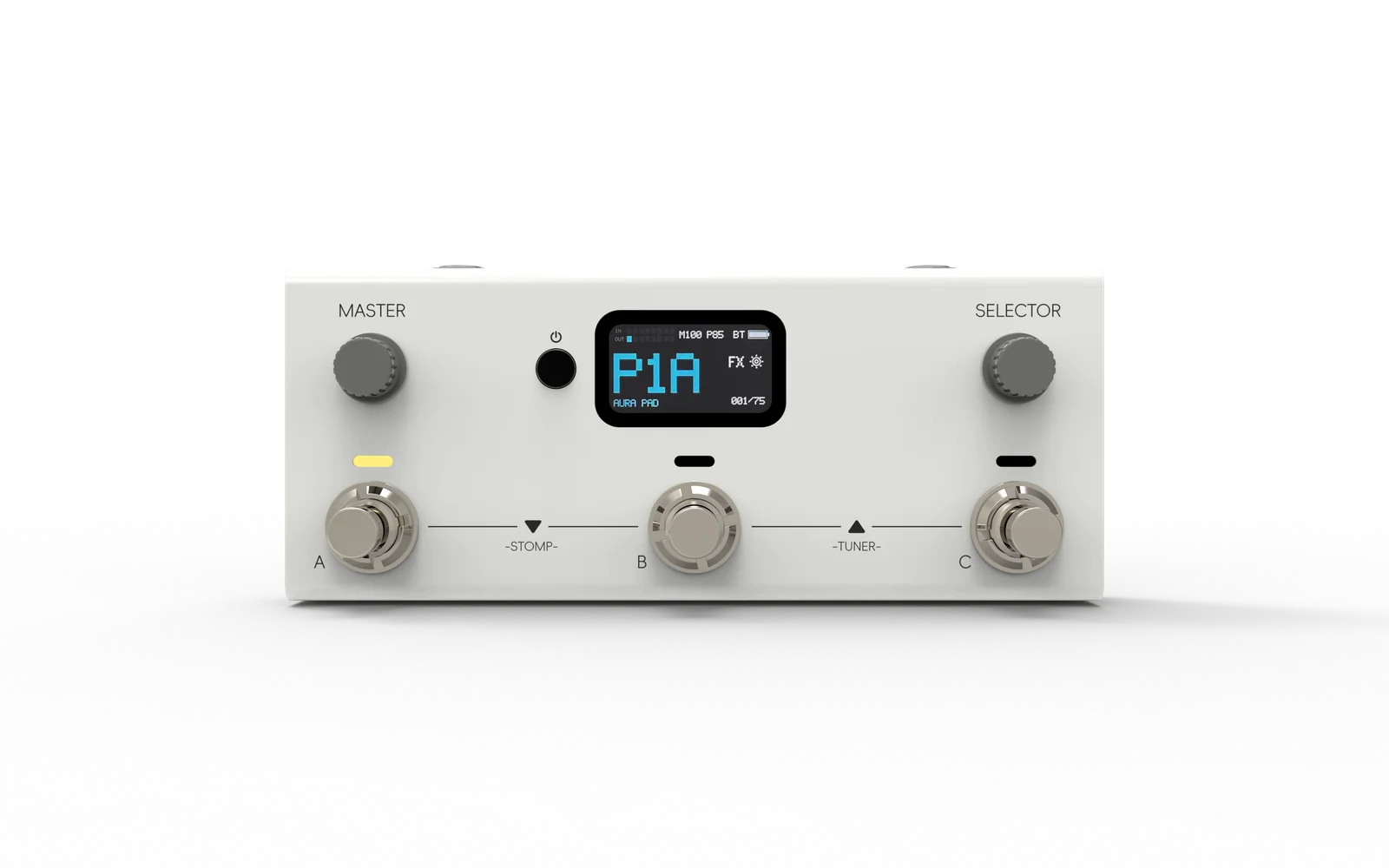

A / B / CThree footswitches recall the core preset groups.

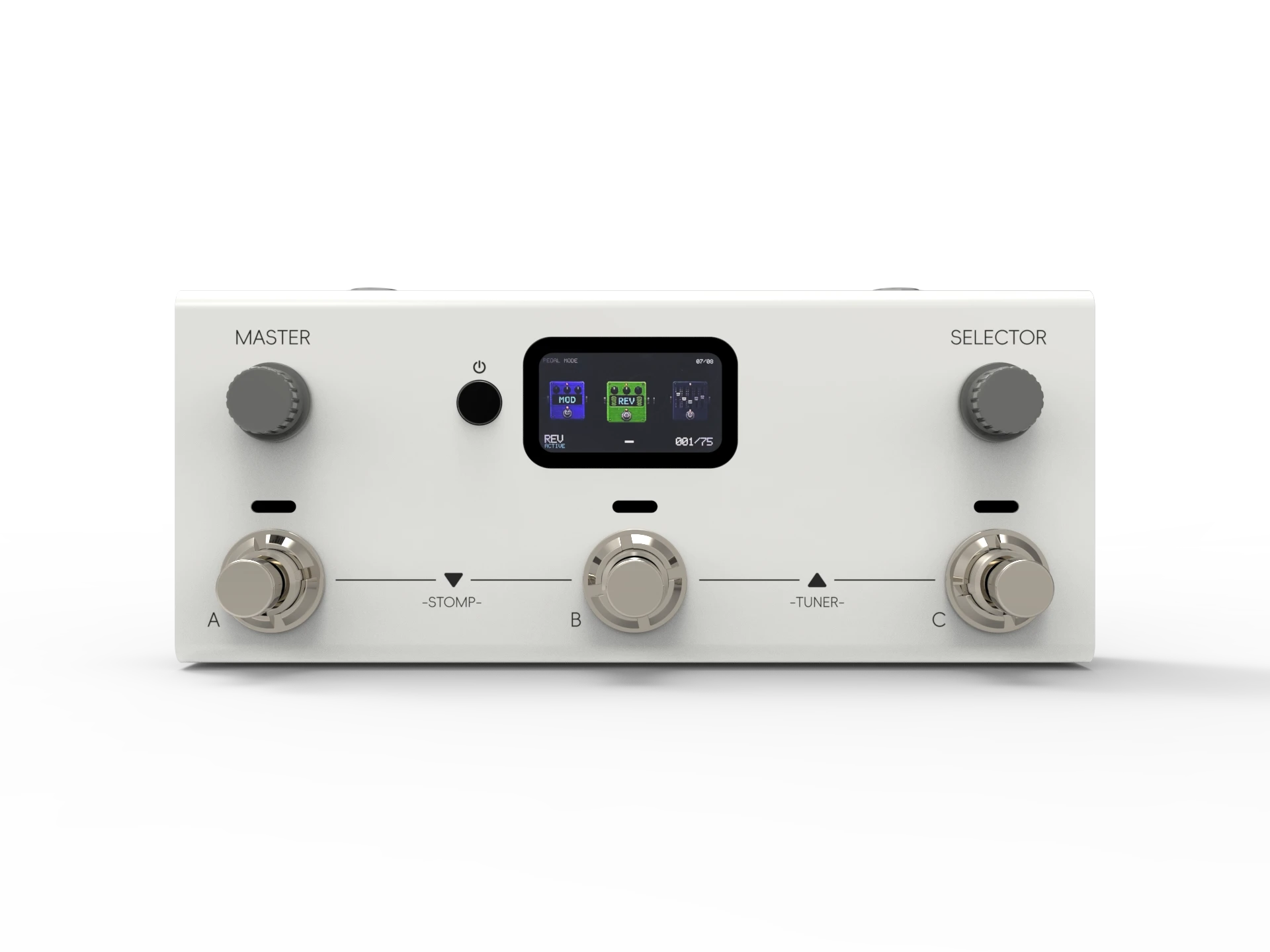

STOMP MODEMap frequently used effect modules directly to the switches.
HANDS FREEMove between sounds and module states while you keep playing.
signal chain8+1 modules active
A complete chain for dynamics, drive, amp and cabinet shaping, modulation, delay, reverb, and EQ.
INFX1FX2AMPCABDELMODREVEQOUT
FX202
Drive & Filter
Scream, Klone, OCD, DS2, fuzz, pitch, dynamic wah, and auto wah shape the front end.
AMP03
Amp Models
30 slots support RESONA tone capture files.
CAB04
Cab Models
30 cabinet slots with third-party IR import.
DEL05
Delay
BBD, Digital, Duck, Ice, Reverse, Lofi, Smear, and Mod.
MOD06
Modulation
Chorus, Phaser, Flanger, Tremolo, and Vibrato.
REV07
Reverb
Room, Plate, Hall, Concert, Spring, Shimmer, and Cloud.
EQ08
EQ
EQ3, EQ6, and EQ8 for fast shaping and detailed correction.
connectivityI/O
Top-panel connections keep recording, monitoring, charging, and MIDI control immediately accessible.
INPUT6.35 mm TS / 1 MΩ for guitar or bass
OUTPUT6.35 mm TS / 100 Ω to interface, amp, monitor, or mixer
HEADPHONES3.5 mm TRS / 16 Ω for silent practice
USB-CCharging, data, phone / computer recording, and MIDI
tone library30 AMP / 30 IR / RESONA
30 AMP slots and 30 CAB / IR slots support RESONA tone capture and third-party IR import.
AMP Models
25 guitar + 5 bass amp models. Every AMP slot can load a RESONA tone capture file.
IR / CAB
25 guitar + 5 bass cabinet models with third-party IR import.
RESONA Ecosystem
RESONA and IR files can be replaced, auditioned, and saved into slots.
01Connect USB-C
02Open LIVTRA Desktop
03Import RESONA / IR
04Save to a slot
recording + settingsCapture ideas over USB-C
Connect a phone or computer for recording while Loopback, USB, BT, MIDI, and tuner settings stay together.
COMPUTERUSB Audio for direct desktop recording
PHONEOTG Recording for fast mobile capture

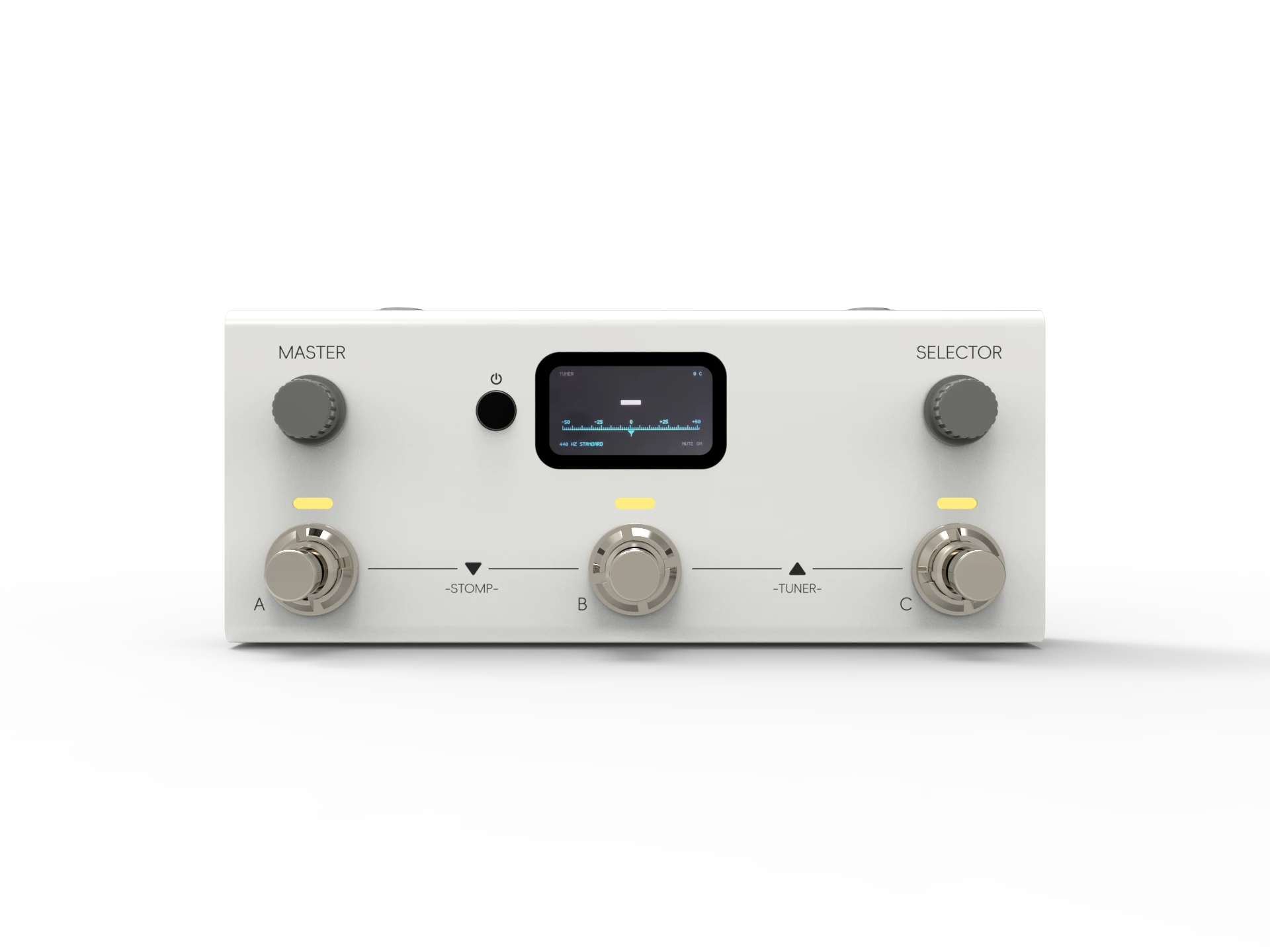

TUNERSilent tuning with an adjustable A4 reference
GLOBALLoopback, USB, BT, and MIDI routing
portable workflowReady wherever you play
168 × 71 × 43.5 mm and approximately 395 g—sized for a desk, rehearsal room, stage, or mobile recording setup.
Silent practice
Headphones and backing tracks with the full effect chain.
Transcription
Use AI-separated stems to focus on drums, bass, or accompaniment.
Mobile recording
Connect one USB-C cable and capture a performance quickly.
Live control
Combine preset groups with STOMP mapping for hands-free changes.
galleryProduct views

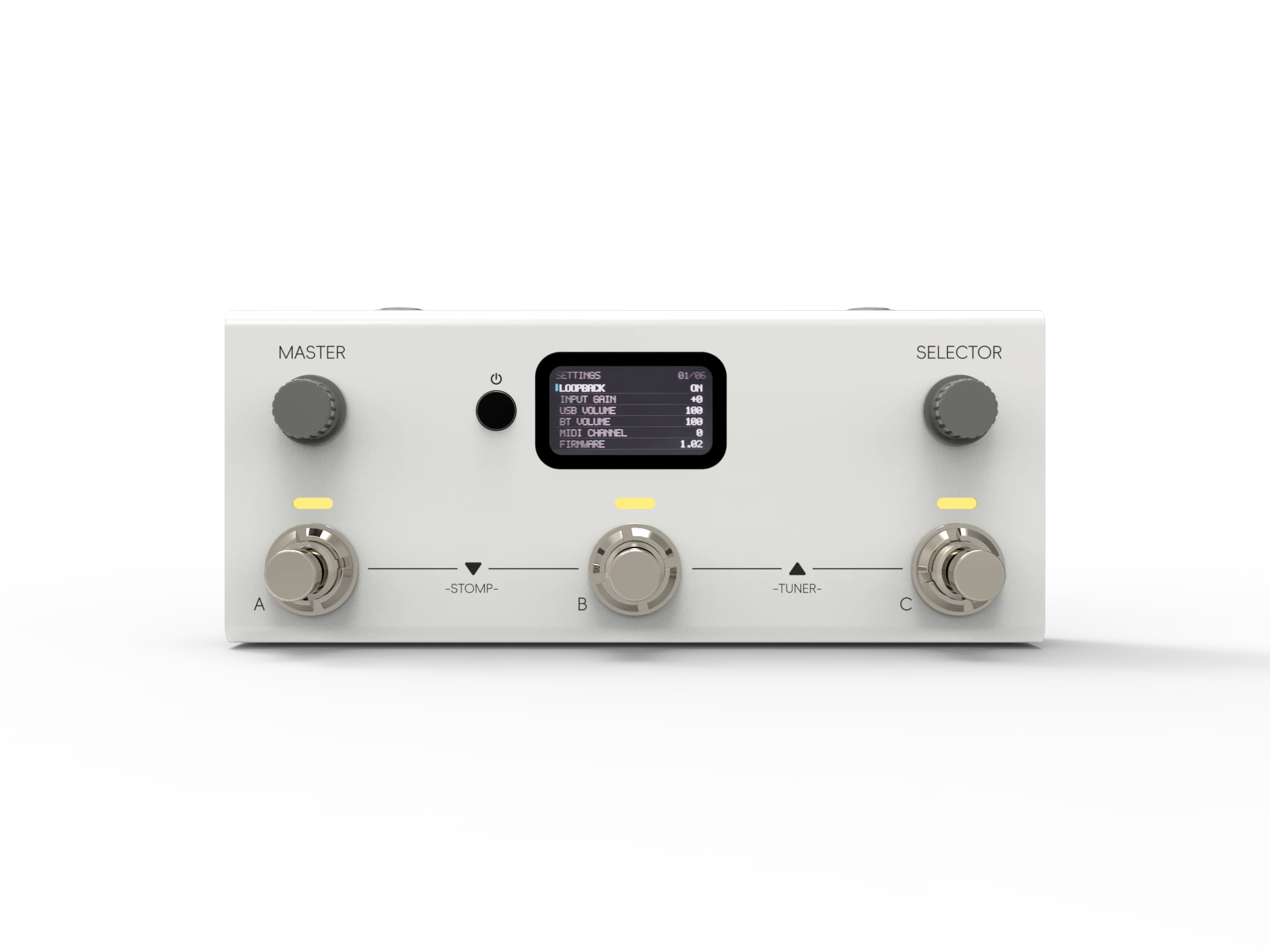

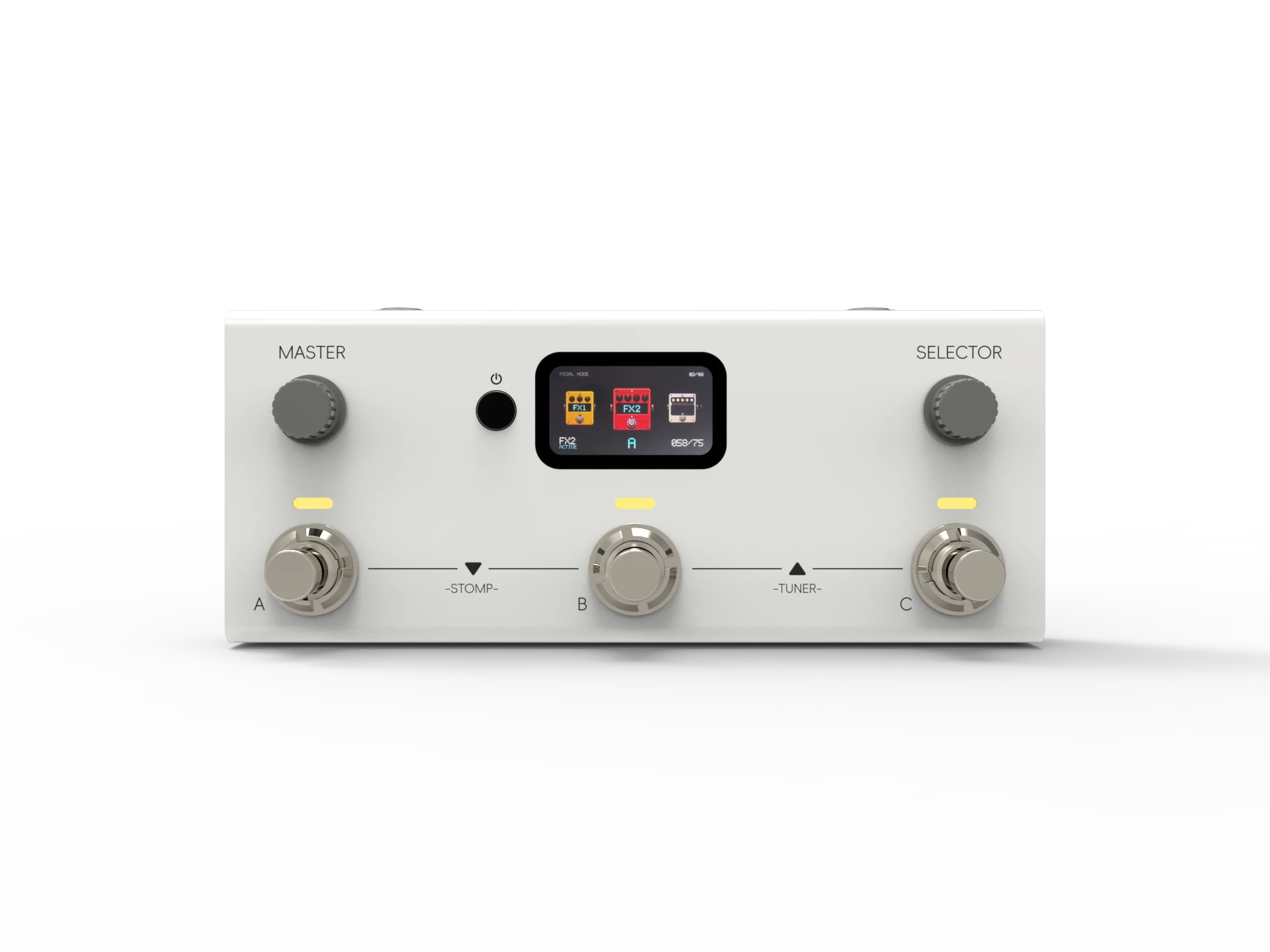

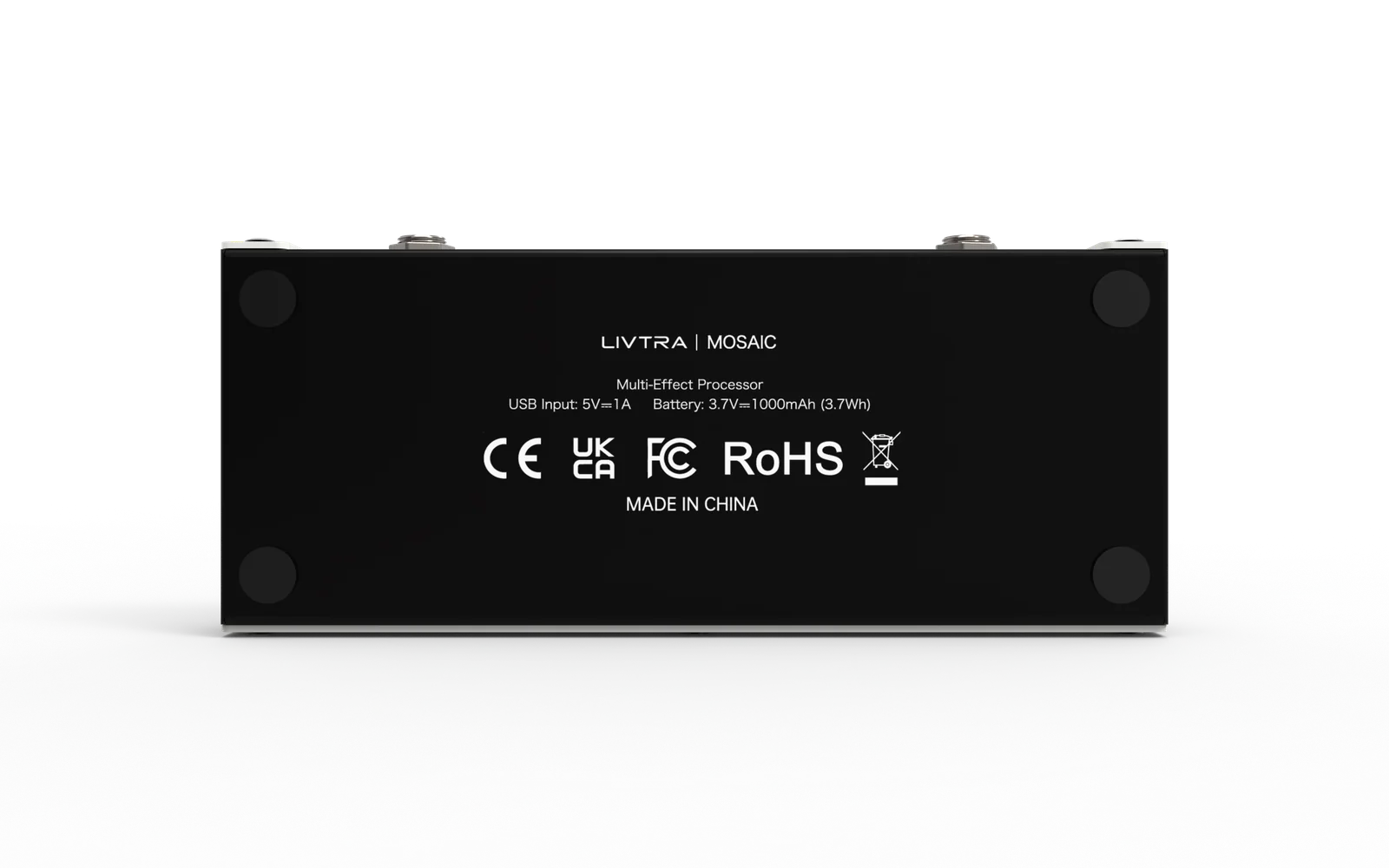

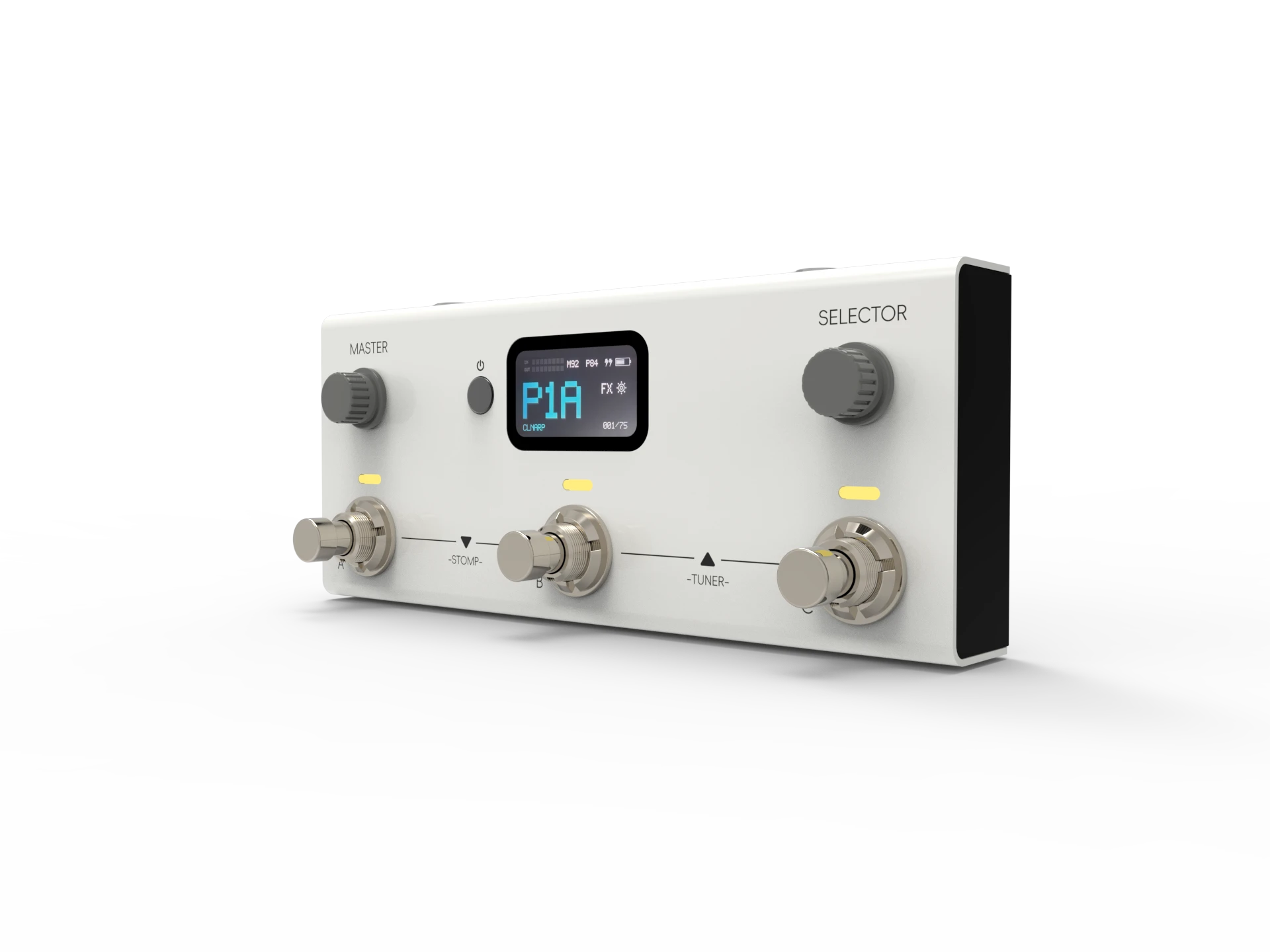

Front, angle, connection, and rear views of the MOSAIC hardware.
specificationsTechnical specifications
Core audio, control, connection, battery, and mechanical specifications.
A/D/A conversion24-bit
Sample rate44.1 kHz
Signal-to-noise ratio103 dB
Effect modulesUp to 8 + 1
Presets75 locations / 48 factory presets
USB recording24-bit / 44.1 kHz
WirelessBT Audio / MIDI · 2.4 GHz ISM
Battery1000 mAh · approximately 7.5 hours
Dimensions / weight168 × 71 × 43.5 mm · approx. 395 g
