01

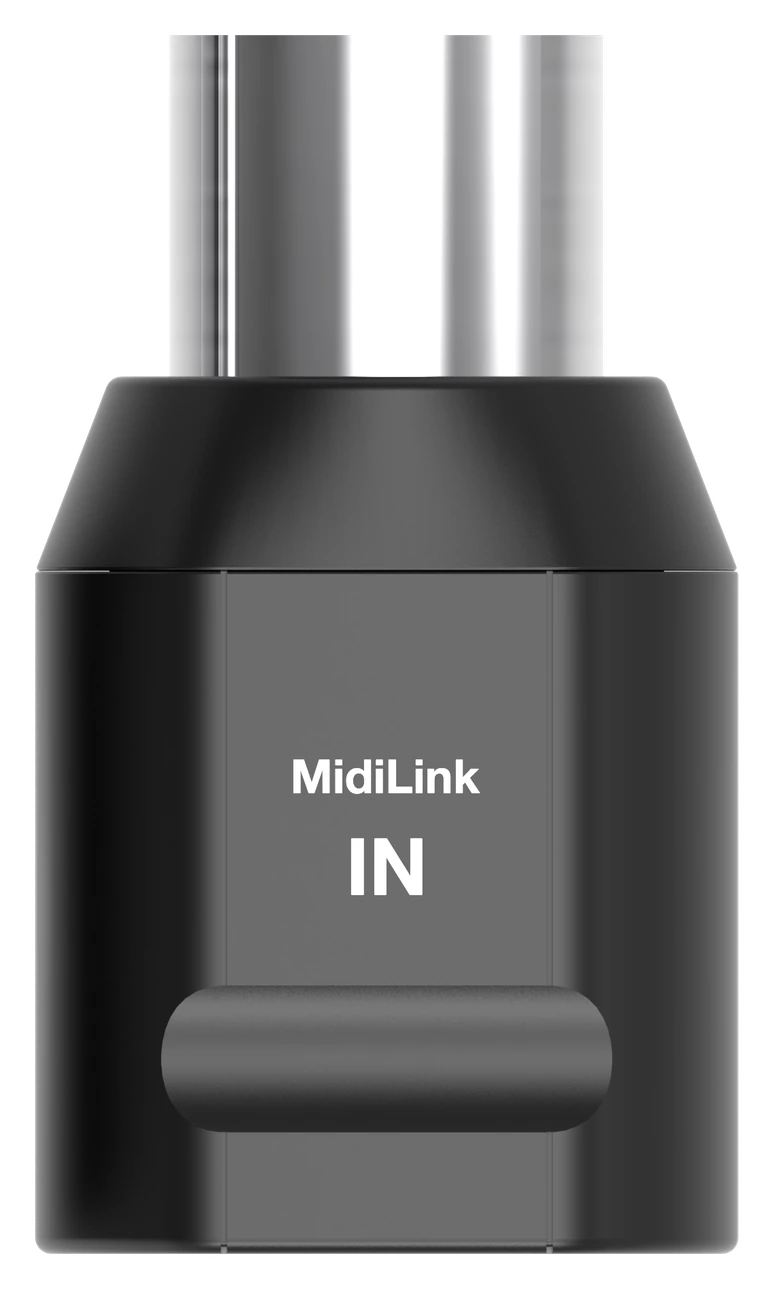

MAIN ADAPTER
IN main adapter
Plugs into MIDI OUT and draws power from that port.
CONNECTS TOMIDI OUT
WIRELESS MIDI TRANSMISSION SYSTEM
MidiLink
Wireless MIDI. Both ways.
Connect MIDI controllers, hardware and computers with compact wireless adapters. Bidirectional MIDI transmission and 5-pin DIN, 3.5 mm TRS and USB connections bring more flexibility to the gear you already use.
MIDILINK / 01
OUT · IN · USB
2.4 GHzWireless MIDI
<3 msTransmission latency
≈10 mUp to, unobstructed
Both waysMIDI transmission
01 / WIRELESS MIDI
Wireless connection. Bidirectional transmission.
2.4 GHz wireless MIDI with latency below 3 ms and an unobstructed range of up to approximately 10 m. Supports bidirectional transmission of common MIDI messages.
2.4 GHz · MIDI
02 / CONNECTIONS
Connect the gear you already use.
IN main adapter, OUT auxiliary adapter and USB adapter. Three compact pieces for your MIDI setup.
02

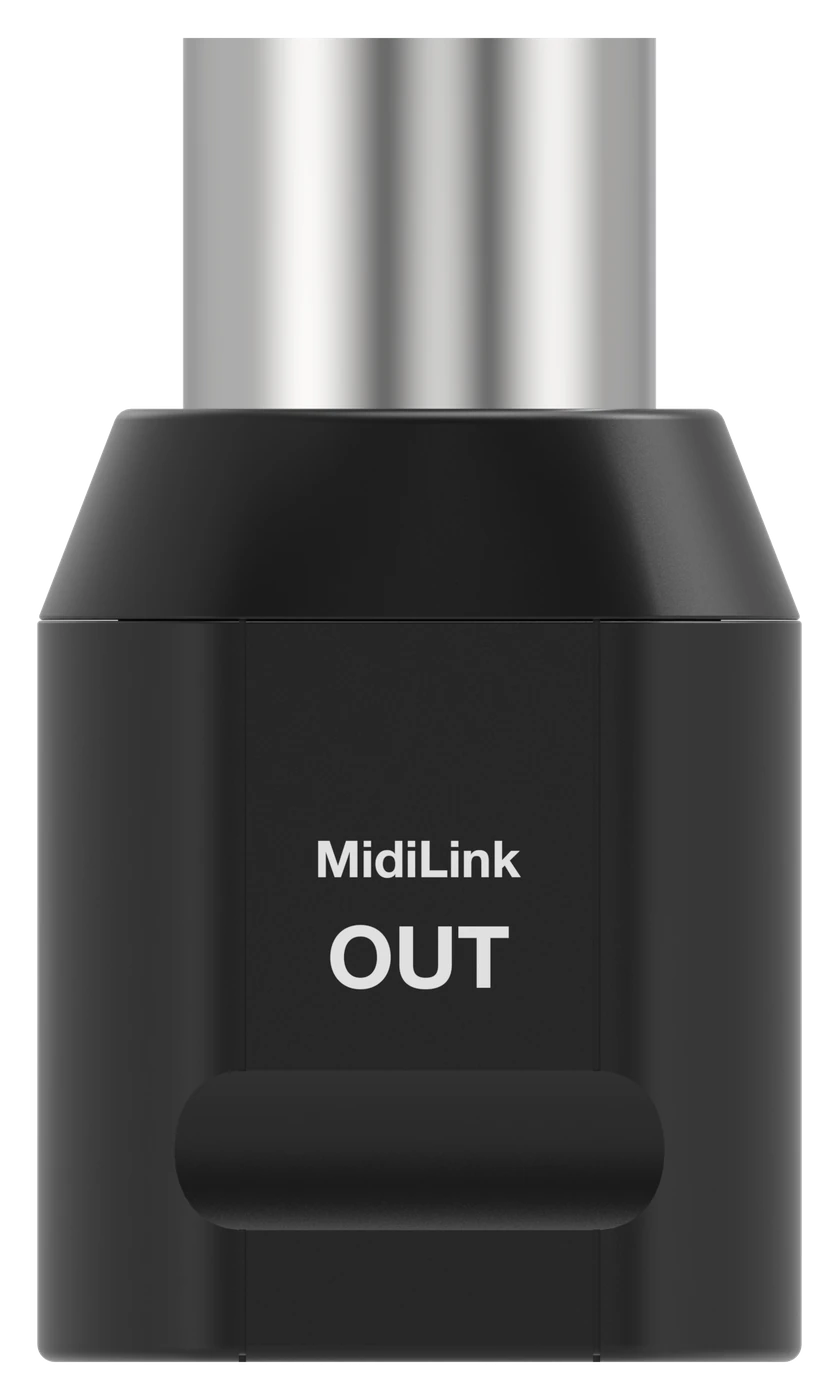

AUXILIARY ADAPTER
OUT auxiliary adapter
Plugs into MIDI IN. No separate power supply is needed.
CONNECTS TOMIDI IN
03

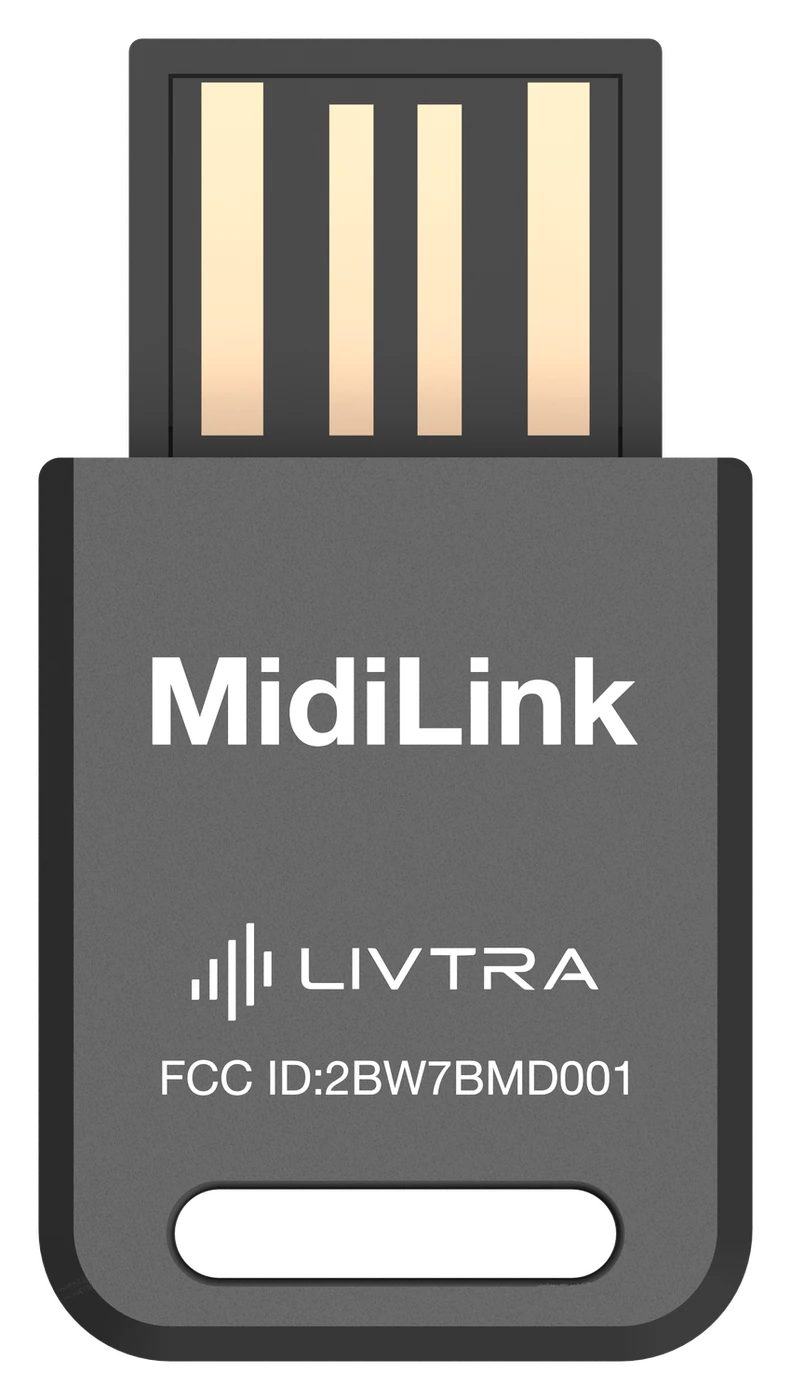

USB ADAPTER
USB adapter
Powered by USB-A.
CONNECTS TOUSB-A HOST
DIN CONNECTION GUIDE
Match the adapter to the device port.
INMain adapter
DEVICE PORTMIDI OUT
OUTAuxiliary adapter
DEVICE PORTMIDI IN

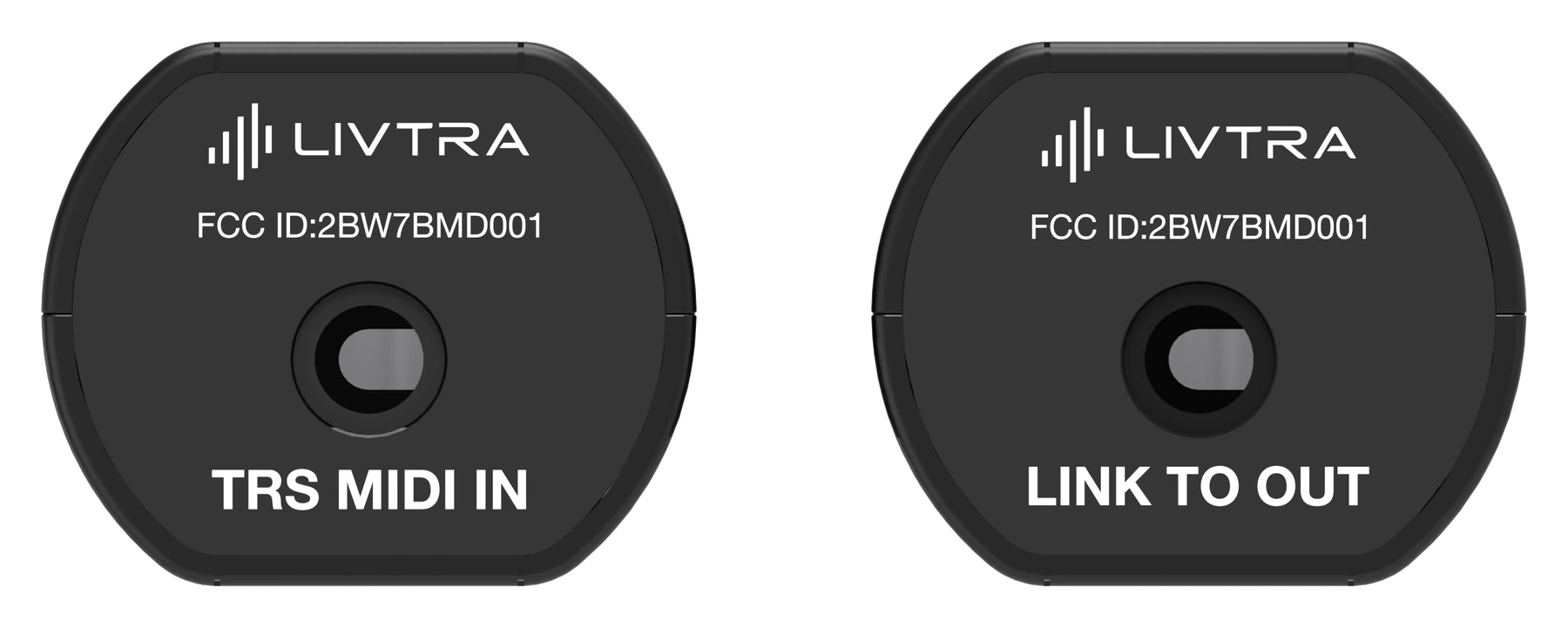

3.5 mm TRS → 5-pin DIN
The OUT auxiliary adapter can also be used on its own for wired MIDI conversion from 3.5 mm to 5-pin DIN.
USB TYPE-A / POWERED
03 / POWER
No battery. No charging.
No built-in batteries in the set.
- IN
- Powered by the device’s MIDI OUT.
- USB
- Powered by the USB-A port.
- OUT
- No separate power supply needed.
04 / PRODUCT VIEWS
Every piece. Every perspective.

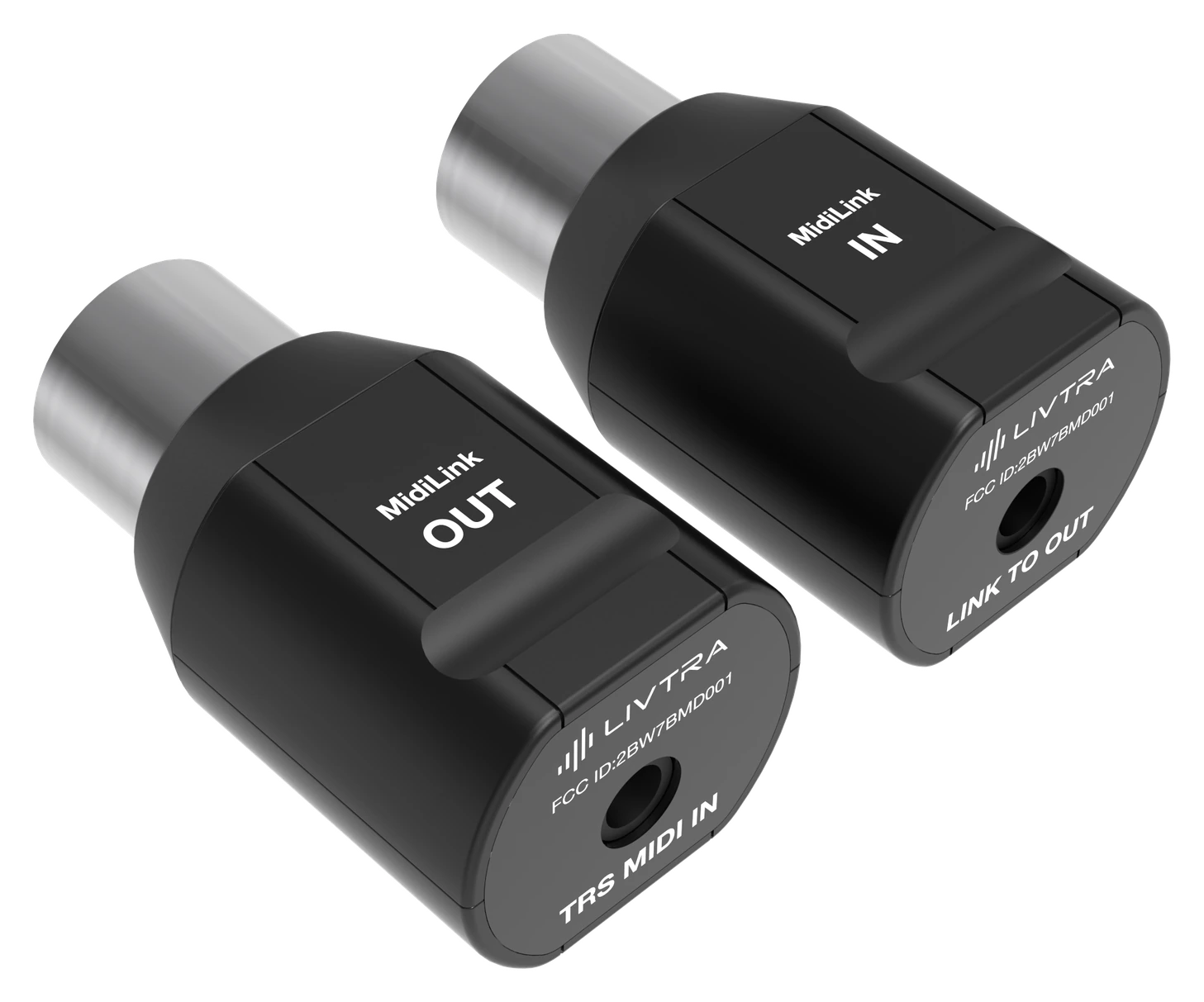

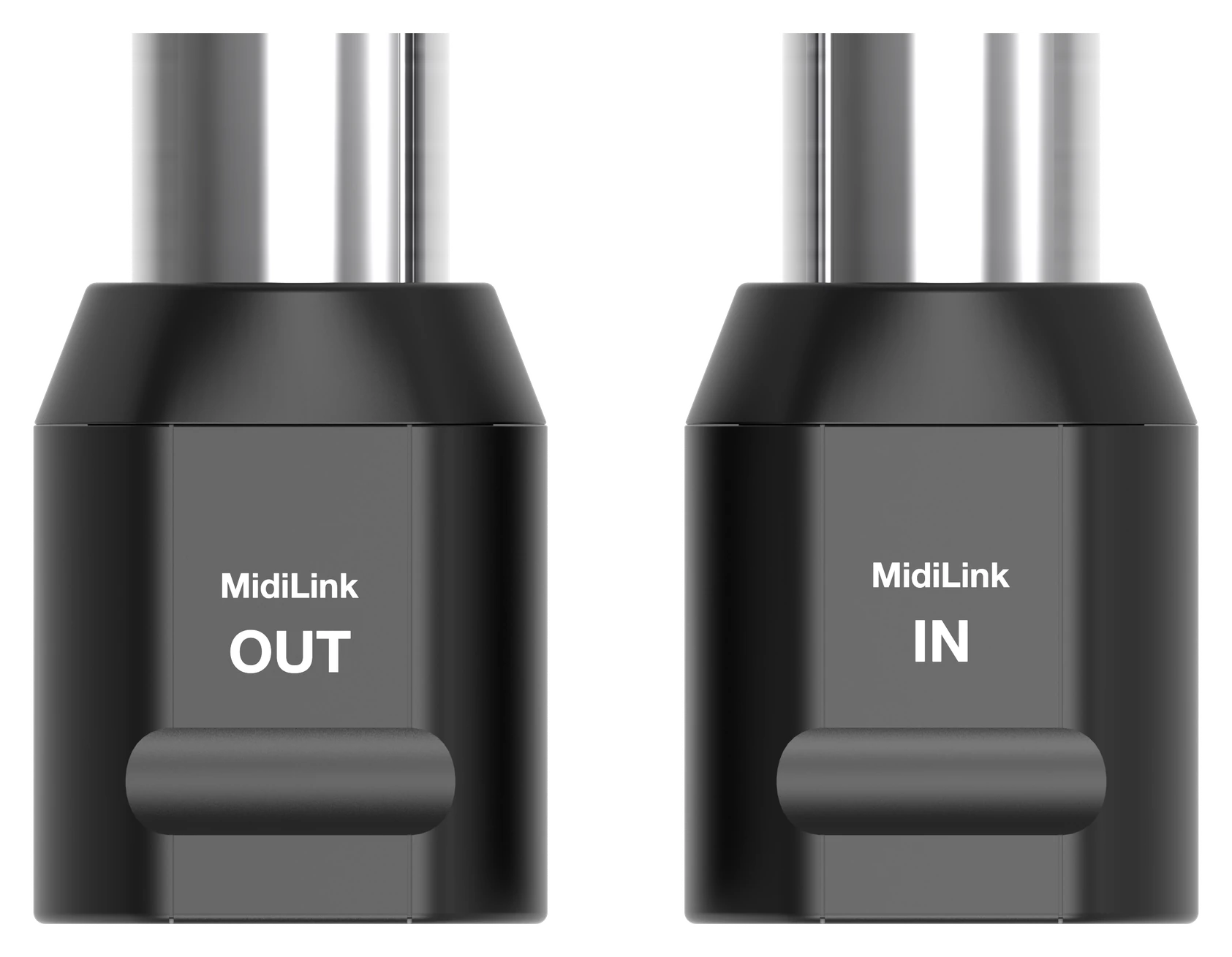

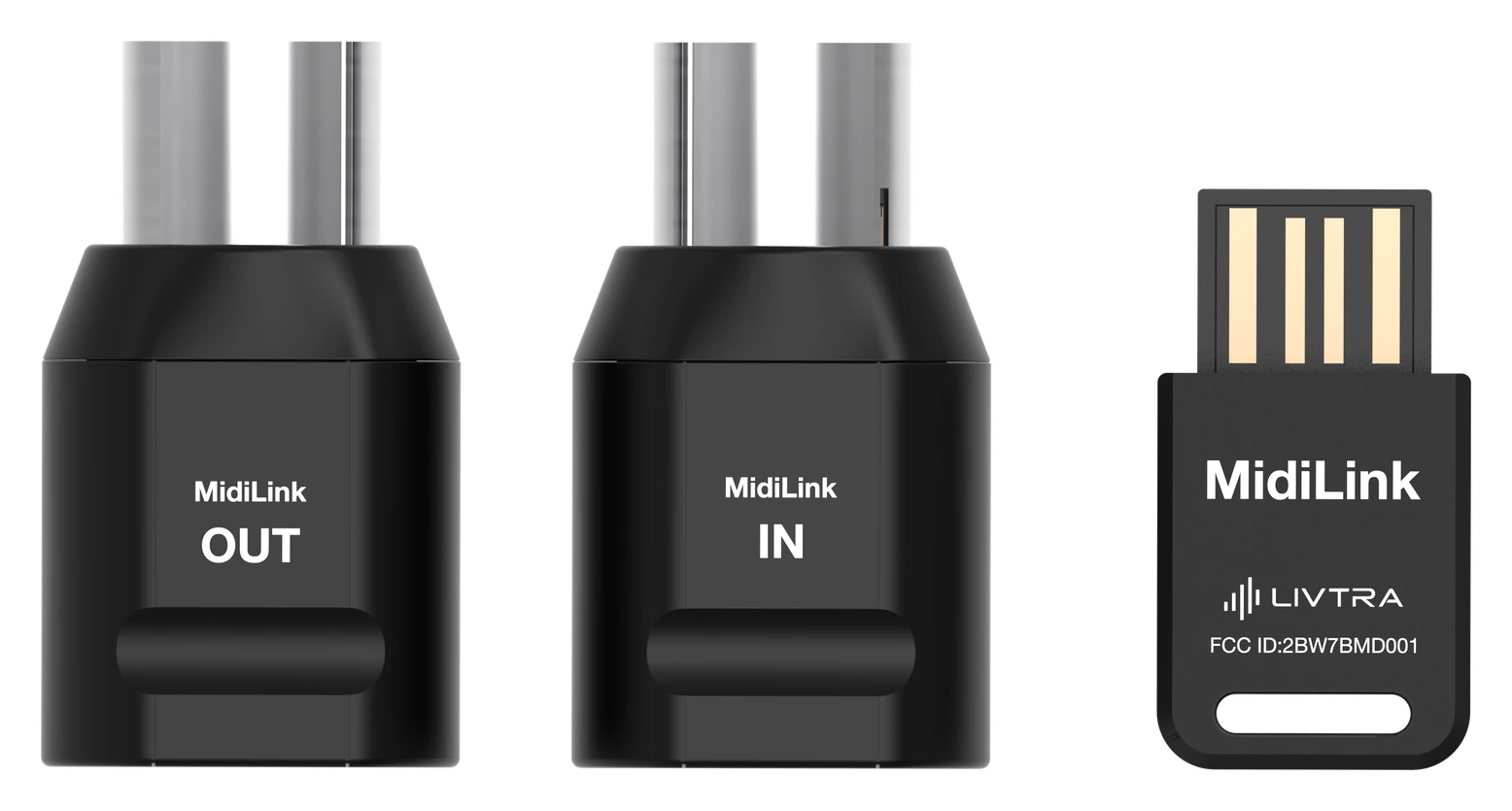

See the complete adapter set, the IN and OUT adapters, and the USB adapter from different angles.
MIDILINK / PRODUCT VIEWS01 / 05
05 / TECHNICAL SPECIFICATIONS
The details.
Transmission, connections, power and dimensions.
- Set contents
- IN main adapter, OUT auxiliary adapter, USB adapter
- Wireless transmission
- IN main adapter and USB adapter: 2400–2483.5 MHz / maximum 6.4 dBm EIRP; latency below 3 ms; unobstructed range up to approximately 10 m
- MIDI transmission
- Bidirectional; channels 1–16; channel numbers are not changed by MidiLink
- Connections
- 5-pin DIN MIDI, 3.5 mm TRS MIDI, USB Type-A
- Compatible systems
- Windows, Mac, iOS, iPadOS, Android
- Power
- IN is powered by MIDI OUT; the USB adapter is powered by USB-A
- IN / OUT size / weight
- Each approximately 37.5 × 21.6 × 18 mm / approximately 9 g
- USB adapter size / weight
- Approximately 30 × 16.2 × 5.9 mm / approximately 2 g
