PAGE TURNER / DUAL FOOT CONTROL

FLUX

Hands on the music. Feet on the next page.

Page turns, navigation, media and scrolling. Two footswitches, seven modes, and the freedom to connect your way.

Explore FLUXTechnical specifications

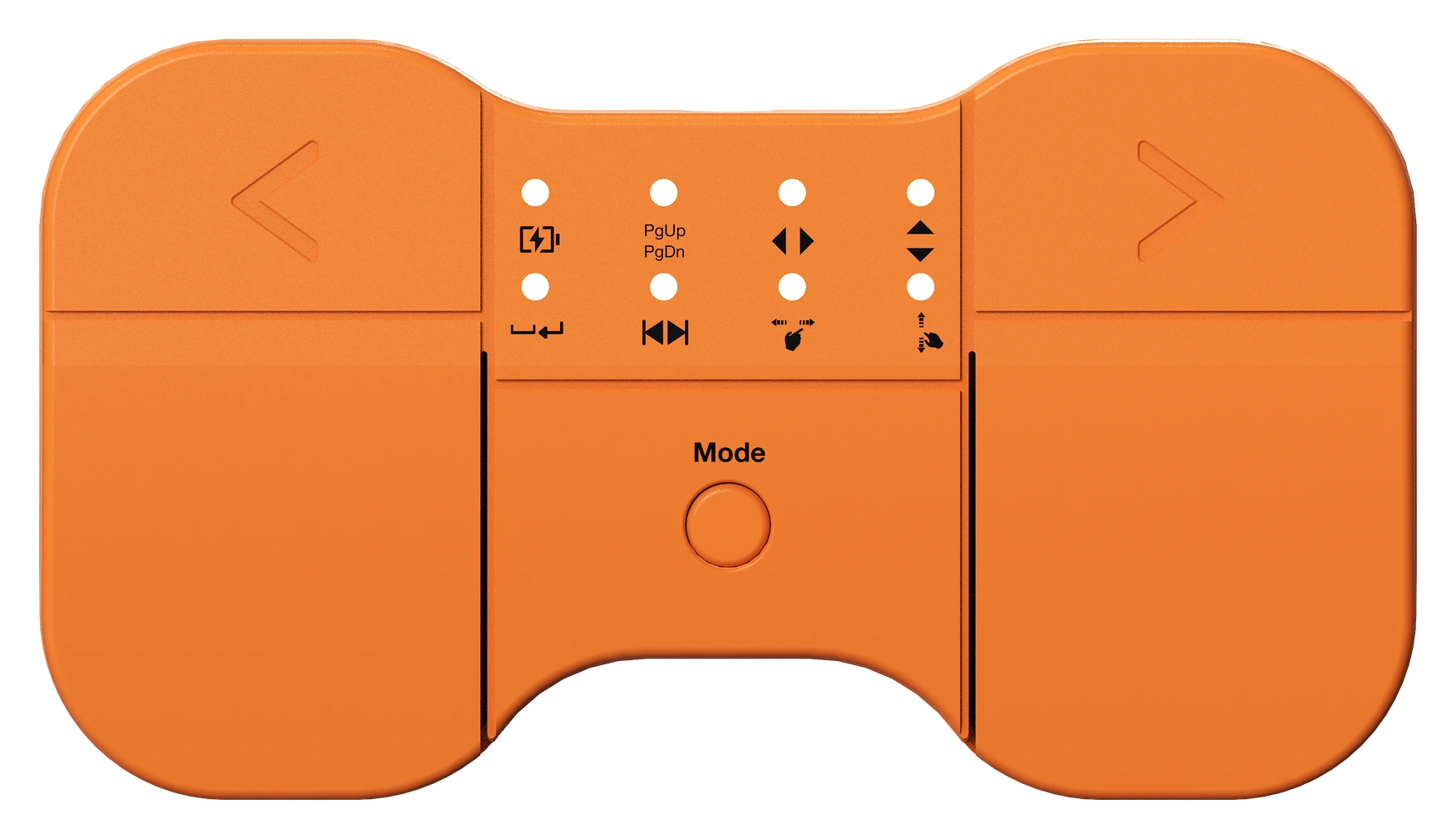

FLUX / 01FLUX orange dual footswitch page turner, top view
Two footswitches. One less distraction.
7Control modes
BT + USBWireless and wired control
TRS OUTIndependent dual-switch output
126 gApproximate weight
01 / CONTROL MODES

One pedal. Seven ways forward.

Choose the commands your software needs. Tap once for a single command; hold to send continuously.

CONTROL PREVIEW01 / 07
Page up / Page down

Move backward or forward in an app that recognizes Page Up and Page Down.

Short pressSend one command
Press and holdSend continuously

Select a mode above to preview its command pair. Platform support is listed below.

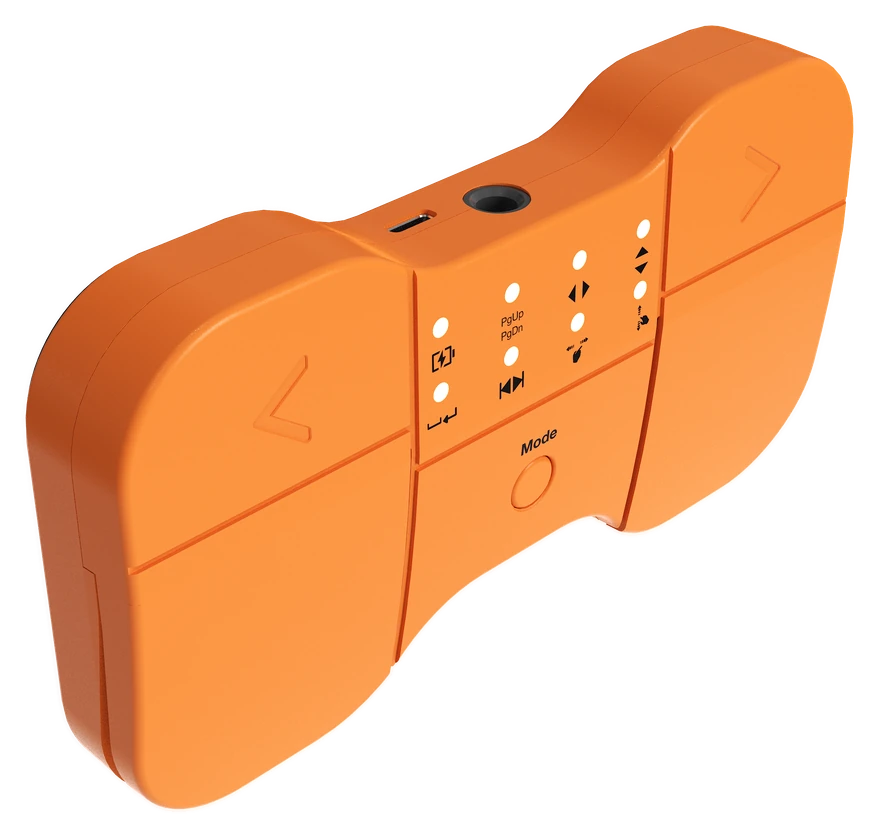

FLUX angled view showing both footswitches, mode button and connection edge
FLUX / Ready for your next session
02 / CONNECTIONS

Wireless. Wired. Or independent.

Connect over BT, use USB for wired control and charging, or connect the independent TRS footswitch output to compatible equipment.

  1. 01

    Reconnect and play

    BT can reconnect to the last paired device.

  2. 02

    Two paths, together

    When BT and USB are both connected, footswitch commands can be sent through both.

01FLUX

BT

Wireless control, with a range of approximately 7 metres in an open, unobstructed environment.

WIRELESS CONTROL
02FLUX

USB

Wired control and charging through one USB connection.

CONTROL + CHARGING
03FLUX

TRS OUT

A 6.35 mm TRS output for two momentary footswitch signals. Independent of the selected control mode.

INDEPENDENT OUTPUT
BT + USB, at the same time.One footswitch action. Both connected paths.
INDEPENDENT TRS FOOTSWITCH OUTPUT

Works even with the power off.

TRS OUT remains available when FLUX is switched off. Use it with equipment that accepts a compatible dual momentary footswitch input.

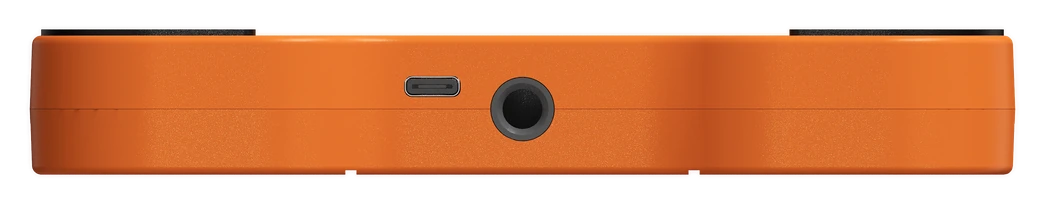

FLUX connection edge showing the USB port and 6.35 mm TRS output
USBControl + charging6.35 mm TRS OUTFootswitch output
03 / PLATFORM SUPPORT

Find your platform. Choose your mode.

Mode availability varies by operating system. The response to a command also depends on the app you use.

FLUX control-mode compatibility by operating system
Control modeWindows /
Android		Mac /
iPadOS		iOS
Page up / Page downSupportedSupportedNot supported
Left / RightSupportedSupportedNot supported
Up / DownSupportedSupportedSupported
Space / EnterSupportedSupportedSupported
Previous / Next trackSupportedSupportedSupported
Horizontal swipeSupportedNot supportedNot supported
Vertical swipeSupportedNot supportedNot supported
Supported by the platformNot supported

System and app behavior may differ. Before use, confirm that your target software supports the control commands you need.

05 / TECHNICAL SPECIFICATIONS

Every detail. At a glance.

The essential specifications for your setup.

FLUX top view alongside its approximate dimensions
160.8 × 88.8 × 22.7 mm
Control
Two footswitches; short press for one command, hold for continuous commands
Modes
Page up/down; left/right; up/down; Space/Enter; previous/next track; horizontal swipe; vertical swipe
Connections
BT, USB, 6.35 mm TRS OUT
Wireless range
Approximately 7 m in an open, unobstructed environment
Radio band / power
2400–2483.5 MHz / max. 6.4 dBm EIRP
Platform support
Windows / Android: all seven modes. Mac / iPadOS: no swipe modes. iOS: up/down, Space/Enter, previous/next track.
Battery
Built-in rechargeable 3.7 V / 200 mAh battery
USB input
5 V / 1 A
Dimensions
Approximately 160.8 × 88.8 × 22.7 mm
Weight
Approximately 126 g

TRS OUT is a dual momentary-switch output for compatible footswitch inputs. The seven control modes do not change its output behavior.
